BMW 4 Series Coupé (G22), technical data

THE 4

THE BMW 4 SERIES COUPÉ: ENGINES &
TECHNICAL DATA

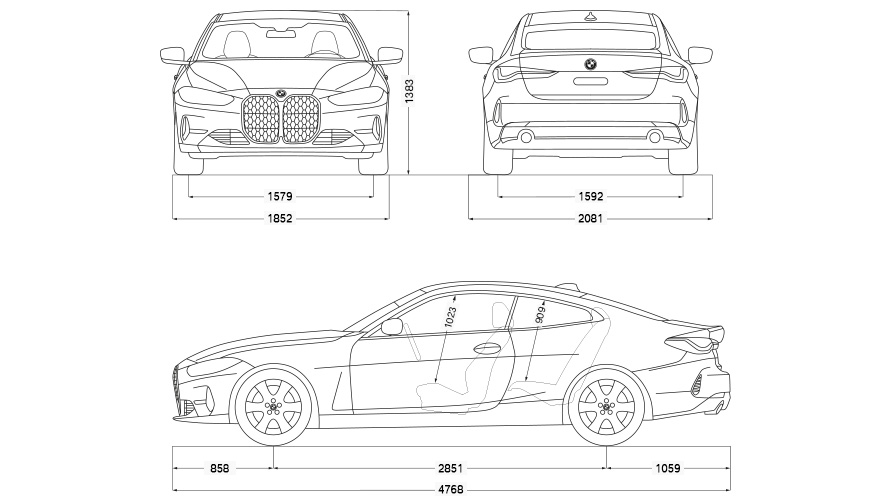

Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the BMW 4 Series Coupé.

Read more
THE 4 THE BMW 4 SERIES COUPÉ: ENGINES & <br>TECHNICAL DATA

TECHNICAL DATA OF THE BMW 4 SERIES COUPÉ.

Weight

Unladen weight EU in kg 1,600
Max. permissible weight in kg 2,015
Permitted load in kg 490
Permitted axle load front/rear in kg 970/1,120
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 240
Acceleration 0–100 km/h in s 7.5

Fuel consumption

Urban in l/100 km 7.6
Extra-urban in l/100 km 5.7
Combined in l/100 km 6.4
CO2 combined emissions in g/km 146
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,665
Max. permissible weight in kg 2,080
Permitted load in kg 490
Permitted axle load front/rear in kg 1,020/1,130
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 96.4/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 238
Acceleration 0–100 km/h in s 7.8

Fuel consumption

Urban in l/100 km 8.0
Extra-urban in l/100 km 6.2
Combined in l/100 km 6.9
CO2 combined emissions in g/km 157
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,620
Max. permissible weight in kg 2,030
Permitted load in kg 485
Permitted axle load front/rear in kg 980/1,120
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 180-190 (245-258)/4,500-6,500
Engine torque (Nm) at 1/min 400/1,550-4,400
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 5.9-5.8

Fuel consumption

Urban in l/100 km 8.0
Extra-urban in l/100 km 5.8
Combined in l/100 km 6.6
CO2 combined emissions in g/km 151
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,680
Max. permissible weight in kg 2,095
Permitted load in kg 490
Permitted axle load front/rear in kg 1,030/1,130
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 96.4/82.0
Engine power in kW (hp) at 1/min 180-190 (245-258)/4,500-6,500
Engine torque (Nm) at 1/min 400/1,550-4,400
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 5.7-5.6

Fuel consumption

Urban in l/100 km 8.3
Extra-urban in l/100 km 6.2
Combined in l/100 km 7.0
CO2 combined emissions in g/km 159
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,770
Max. permissible weight in kg 2,190
Permitted load in kg 495
Permitted axle load front/rear in kg 1,070/1,180
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 275-285 (374-387)/5,500-6,500
Engine torque (Nm) at 1/min 500/1,800-5,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 4.8

Fuel consumption

Urban in l/100 km 9.8
Extra-urban in l/100 km 6.4
Combined in l/100 km 7.7
CO2 combined emissions in g/km 174
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/45 R18 95 Y XL
Tyre dimensions rear 255/40 R18 99 Y XL
Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy

Weight

Unladen weight EU in kg 1.815
Max. permissible weight in kg 2,245
Permitted load in kg 505
Permitted axle load front/rear in kg 1,110/1,190
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 275-285 (374-387)/5,500-6,500
Engine torque (Nm) at 1/min 500/1,800-5,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 4.5

Fuel consumption

Urban in l/100 km 10.1
Extra-urban in l/100 km 6.4
Combined in l/100 km 7.8
CO2 combined emissions in g/km 178
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/45 R18 95 Y XL
Tyre dimensions rear 255/40 R18 99 Y XL
Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy

Weight

Unladen weight EU in kg 1,680
Max. permissible weight in kg 2,095
Permitted load in kg 490
Permitted axle load front/rear in kg 1,020/1,160
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 120-140 (163-190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 229-240
Acceleration 0–100 km/h in s 7.8-7.1

Fuel consumption

Urban in l/100 km 5.4
Extra-urban in l/100 km 4.5
Combined in l/100 km 4.8
CO2 combined emissions in g/km 127
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,745
Max. permissible weight in kg 2,165
Permitted load in kg 495
Permitted axle load front/rear in kg 1,070/1,170
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 238
Acceleration 0–100 km/h in s 7.5-7.4

Fuel consumption

Urban in l/100 km 5.8
Extra-urban in l/100 km 4.8
Combined in l/100 km 5.2
CO2 combined emissions in g/km 136
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1,855
Max. permissible weight in kg 2,285
Permitted load in kg 505
Permitted axle load front/rear in kg 1,150/1,200
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 210 (286)/4,000
Engine torque (Nm) at 1/min 650/1,500-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 5.1

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km -
CO2 combined emissions in g/km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Weight

Unladen weight EU in kg 1.905
Max. permissible weight in kg 2,340
Permitted load in kg 510
Permitted axle load front/rear in kg 1,170/1,225
Luggage capacity min. (seats up or roof down) in l 440
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 250 (340)/4,400
Engine torque (Nm) at 1/min 700/1,750-2,250
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 4.6

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km -
CO2 combined emissions in g/km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/45 R18 95 Y XL
Tyre dimensions rear 255/40 R18 99 Y XL
Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW M440i xDrive Coupé:
Fuel consumption in l/100 km (combined): 7.8
CO2 emissions in g/km (combined): 178



Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Read more

Fuel consumption and CO2 emissions.

  • BMW M440i xDrive Coupé:
    Fuel consumption in l/100 km (combined): 7.8
    CO2 emissions in g/km (combined): 178

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
